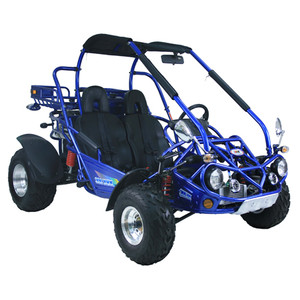

TRAILMASTER XRX MINI WITH REVERSE (FREE SHIPPING SOME ASSEMBLY)

  • Image 1
  • Image 2
  • Image 3
  • Image 4
Price:
$1,250.00
Weight:
400.00 LBS
Shipping:
Free Shipping
Quantity:


Product Description

FREE SHIPPING (SOME ASSEMBLY)





MINI XRX/R



Engine Information

Engine type: 4-stroke, single cylinder, air cooled

Displacement: 163cc

Max HP: 5.5hp/3600rpm

Max torque: 8 lb ft/3600rpm

Bore x stroke: 2.6 x 1.8 inches

Max speed: 12.4mph

Climbing ability: 12 degrees

Ignition: C.D.I

Starting system: Electric Start with Pull Start Backup

Battery: 12V 9Ah

Carburetor brand: JF (RX)

Engine oil: SAE 15W-40

                General Information

Clutch: Automatic

Driveline / Driving wheel: Chain / Dual wheel drive

Suspension, F / R: Dual A-arm / Double Oil Damped Shock

Brakes, F / R: No / Disc

Tires, F / R: 4.10-6 / 13 x 5-6

Fuel capacity: 1.2 gal

Weight, G.W. / N.W.: 209 / 176 lbs

Max load: 250 lbs

                 Dimension Information

Wheelbase: 41.7 inches

OA L x W x H: 58.5x36x43 inches

Height to seat: 7.5 inches

Min ground clearance: 3.5 inches

Pedal to seat back: 26” to 31”; Pedal can also adjusted to 3” or 6” shorter.

Main Features: Live Axle, Two-wheel Drive, Electric Start w/Pull Start Back Up, LED Headlight, Remote Start/Kill, Adjustable Sports Seat, Adjustable Pedal, Five Point Safety Seatbelt, Speed Governor, Horn
